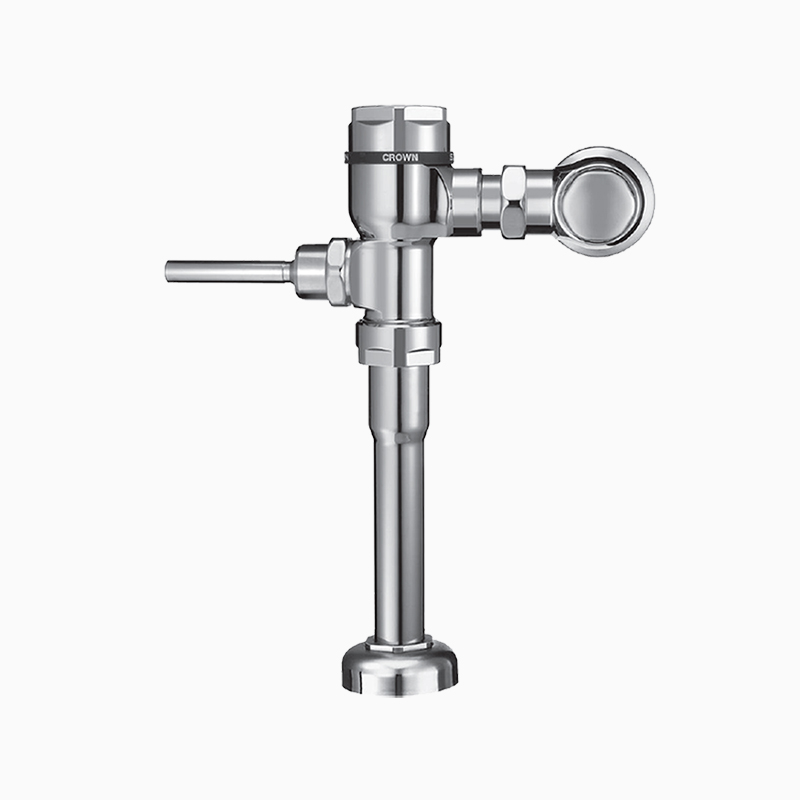

Crown® Exposed Manual Urinal Flushometer

Request a Custom Spec

Don't see a variation that matches what you're looking for? You can request a custom spec from us with the exact options you want. Just click the button and fill out the form.

Request a Spec

Downloads

Features

  • Flush volumes to meet water-efficiency goals
  • Unique cover design isolates threads from water source, protecting threads from harsh water conditions
  • Fixed volume piston with filtered O-ring bypass
  • ADA-compliant, metal oscillating, non-hold open handle with triple seal handle packing keeps fixture from exceeding intended flush volume
  • Locking, vandal-resistant stop cap prevents tampering
  • Adjustable tailpiece accommodates different widths
  • High copper, low zinc brass casting for dezincification resistance ensures long life
  • Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037.

Features

  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • Fixed Volume Piston with Filtered O-ring Bypass
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
  • Handle Packing, Main Seat, Stop Seat and Vacuum Breaker molded from PERMEX® Rubber Compound for Chloramine Resistance
  • Valve designed to accept Low and Ultra-Low Consumption Pistons only to ensure Water Conservation
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
