Where to buy GEM-2 136

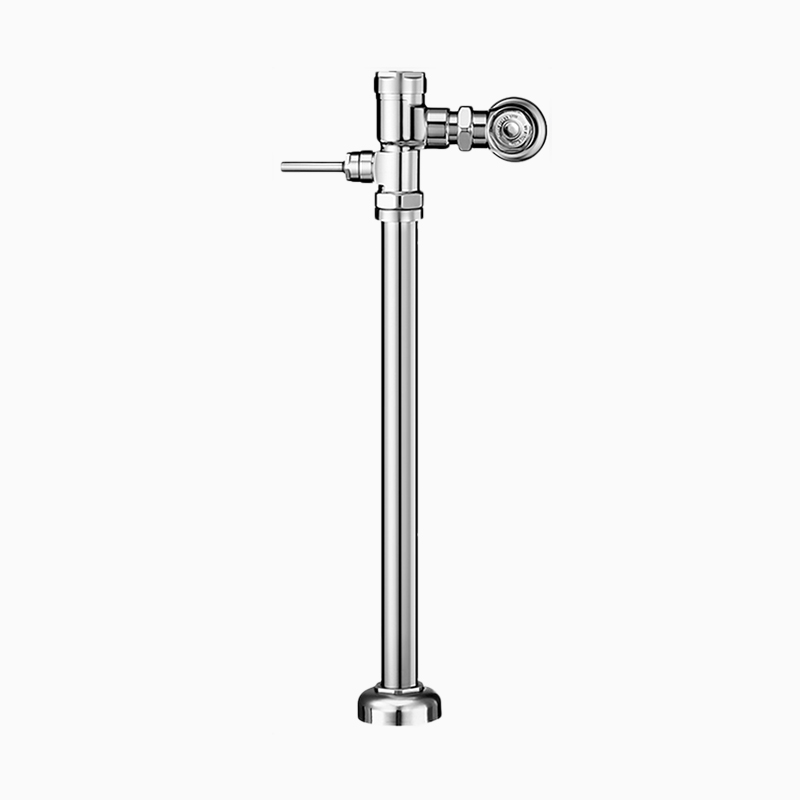

GEM-2® Exposed Manual Water Closet Flushometer

Request a Custom Spec

Don't see a variation that matches what you're looking for? You can request a custom spec from us with the exact options you want. Just click the button and fill out the form.

Request a Spec

Downloads

Features

  • for top or back inlet squat toilets
  • ADA-compliant, non-hold-open handle keeps toilet from exceeding intended flush volume
  • Integrity of the product is maintained with control stop plug
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
  • Valve shall be in compliance to the applicable sections of ASSE 1037.

Features

  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • Vacuum Breaker Flush Connection
  • Fixed Volume Piston with Filtered O-ring Bypass
  • Handle Packing, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine Resistance
  • Spud Coupling, Wall and Spud Flanges for 11⁄2” Top Inlet
  • 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
