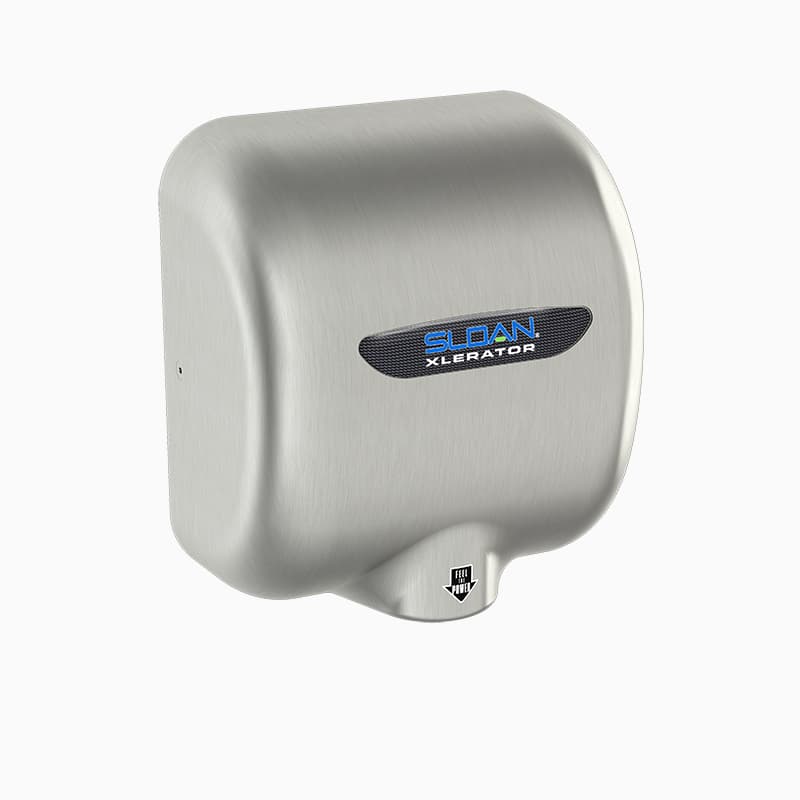

Brushed Nickel

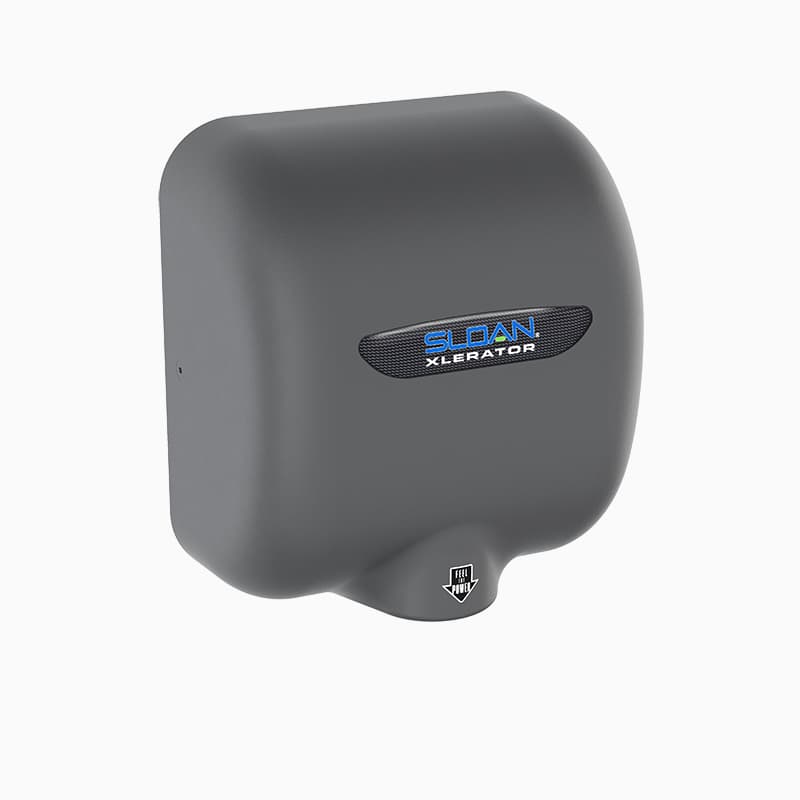

Graphite

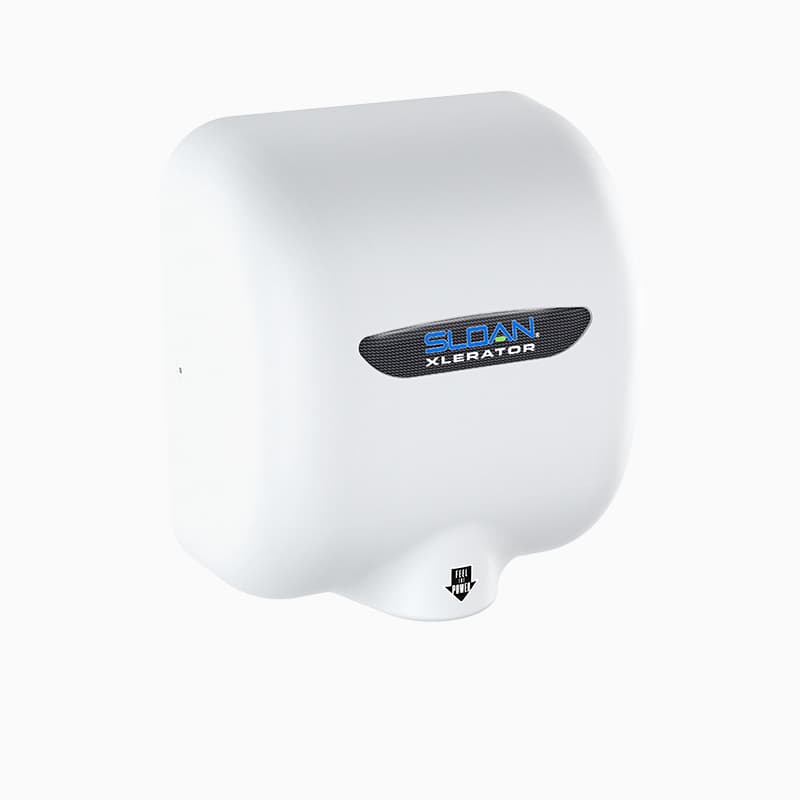

Matte White

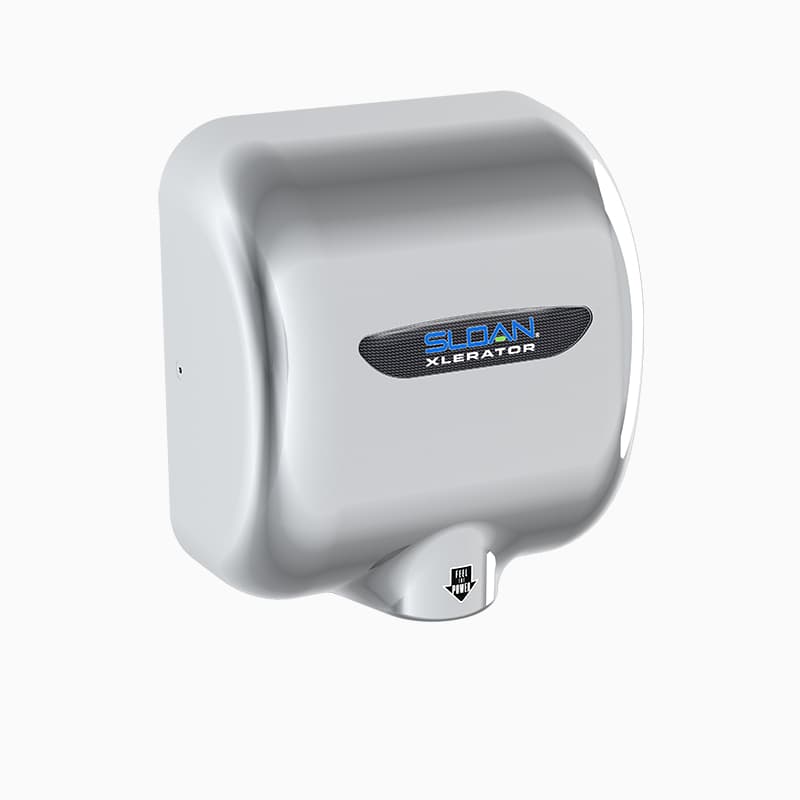

Polished Chrome

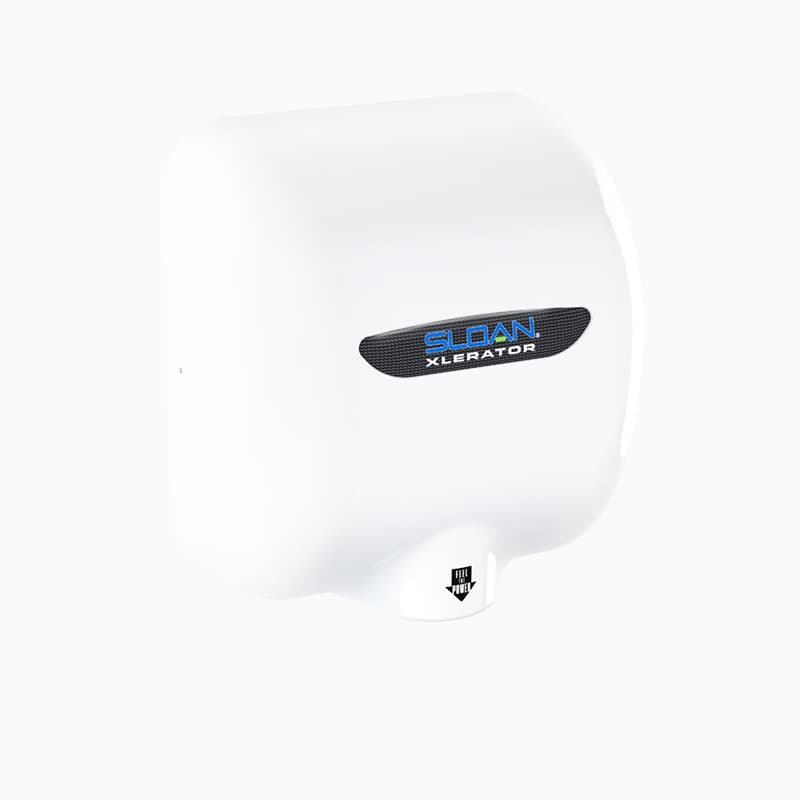

Polished White
Hand Dryers/Sloan® XLERATOR®

EHD-502

Sloan® XLERATOR® Sensor-Operated Wall-Mounted Hand Dryer

Finish

HEPA

Where to buyAdd to DesignSpec

Specifications

Features

  • Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast
  • Residual moisture is evaporated with a warm stream of air up to 135°F/57°C
  • One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments
  • 95% cost savings vs. paper towels
  • Can be easily positioned to comply with ADA requirements or for juvenile height
  • Series commutated, through-flow discharge, vacuum type motor/blower combination
  • Air velocity of 16,000 LFM (linear feet per minute) at an outlet temperature of 135°F/57°C at a 72°F/22°C ambient room temperature
  • Heating element constructed of Nichrome wire and protected by an automatic resetting thermostat
  • One piece heavy-duty rib reinforced die cast zinc alloy housing
  • Bright chrome plate or chip-proof electrostatically-applied epoxy finish, available in Polished White, Matte White, Polished Chrome, Brushed Nickel and Graphite
  • Tamper-proof cover fasteners are included, Virtually maintenance free
  • Decibel Rating of 78-80 dB
  • 8 second dry time, Hygienic hand dryer solution
  • Adjustable speed, sound and heat control
  • Available with Recess Kit for ADA compliance
