Series 900® Flushometer Exposed

Series 900® Flushometer Exposed Repairs Parts

A-143-A

Chrome Plated Electronic Solenoid Valve Body Assembly

Code 0301048

Flushometers

HY-83-A

Hydraulic Actuator Cartridge Assembly

Code 3318001

Flushometers

H-700-A

1" Screwdriver Control Stop with Vandal Resistant Cap

Code 3308386

Flushometers

H-790-A

1" Screwdriver Control Stop for Adjustable Tail Less Cap

Code 0388065

Flushometers

V-600-AA

3/4" x 9" Royal® Vacuum Breaker Assembly

Code 3393004

Flushometers

V-600-AA

1 1/4" Royal® Vacuum Breaker Assembly

Code 3393006

Flushometers

V-600-AA

1 1/2" x 9" Royal® Vacuum Breaker Assembly

Code 3393007

Flushometers

V-600-A

Royal® Short Vacuum Breaker Assembly

Code 0393003

Flushometers

F-5-A-T

1 1/2" x 3" Royal® Spud Coupling Assembly with Flange, Slip Joint Gasket and Friction Ring

Code 0306146

Flushometers

F-56-A

1 1/2" x 3" Regal® Spud Coupling Assembly with Flange, Slip Joint Gasket and Friction Ring

Code 0306145

Flushometers

F-5-A-U

1 1/4" x 3" Royal® Spud Coupling Assembly with Flange, Slip Joint Gasket and Friction Ring

Code 0306140

Flushometers

F-55-A

1 1/4" x 3" Regal® Spud Coupling Assembly with Flange, Slip Joint Gasket and Friction Ring

Code 0306142

Flushometers

F-5-A-W

3/4" x 2 1/2" Royal® Spud Coupling Assembly with Flange, Slip Joint Gasket and Friction Ring

Code 0306125

Flushometers

F-54-A

3/4" x 2 1/2" Regal® Spud Coupling Assembly with Flange, Slip Joint Gasket and Friction Ring

Code 0306102

Flushometers

H-633-AA

1" Sweat Solder Kit with Cast set Screw

Code 3308782

Flushometers

H-636-AA

3/4" Sweat Solder Kit

Code 3308788

Flushometers

HY-112-A

Electronic and Hydraulic Plate with Screws

Code 3318002

Flushometers

11A

H-1010-A

1" Royal® Vandal Resistant Stop Cap

Code 3308772

Flushometers

11B

H-528

Control Stop Vandal Resistant Hole Plug

Code 5388002

Flushometers

A-1050-A

Royal® High Efficiency Urinal Diaphragm Assembly 0.125 gpf

Code 3301143

Flushometers

A-1047-A

Royal® High Efficiency Urinal Diaphragm Assembly 0.25 gpf

Code 3301142

Flushometers

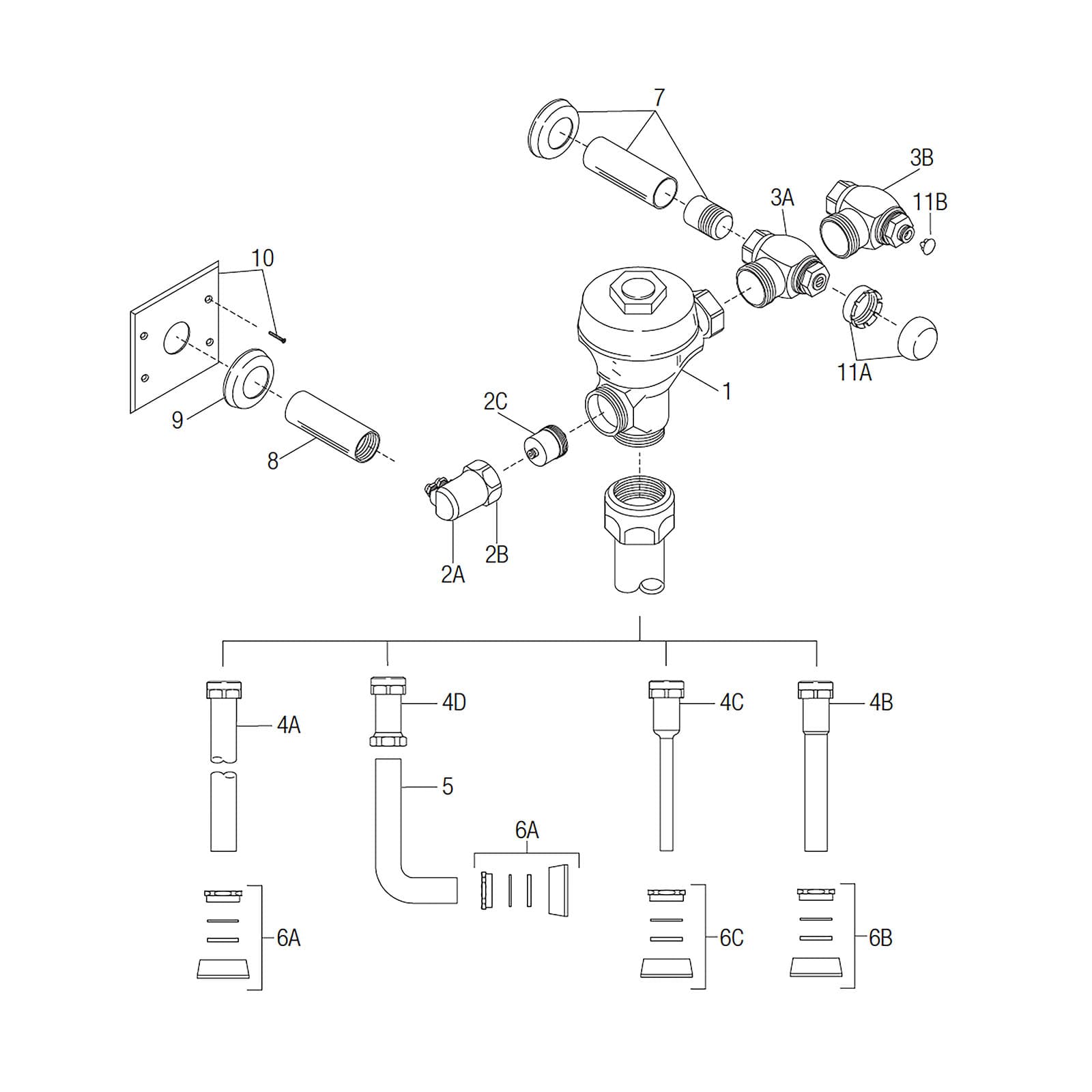

Line Drawing image for Series 900® Flushometer Exposed
